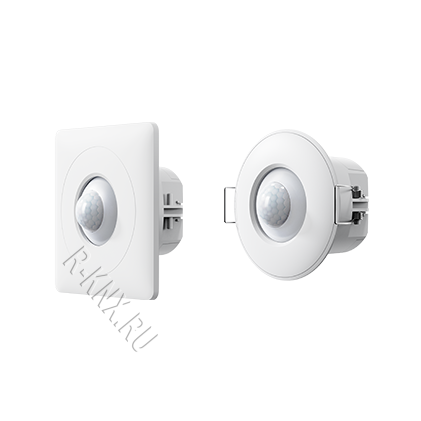

GVS KNX Motion Sensor, PIR
Производитель:
Артикул: CSBP-04/00.1.00
23 088 р.
ПОД ЗАКАЗ
Наличие на складах:
| 1) Склад на Бумажном: | 0 шт. |
| 2) Склад удалённый: | 0 шт. |
Описание
Diameter/radius 14m, max. mounting height 12m. Wothpyroelectric infrared detection technology. Support 4 presence detector channels, and the first channel with 3 levels control, master/slave work mode, Constant lighting Control, RTC controller, Logic and scene group functions. Support KNX secure protocolIntallation: Ceiling-mounted/ Wall mounted, fits in 86*86mm and German double-60mm wall boxes.
Характеристики:
Weight: 0.05KG
Dimension: φ70 x 51.5mm
Bus voltage: 21-30V DC, via the KNX bus
Bus current: <6.5mA / 24V; <5.5mA / 30V
Bus consumption: <165mW
Illuminance: 0-2000lux（ CSBP-04/00.1.0x Only）
Dimension: φ70 x 51.5mm
Bus voltage: 21-30V DC, via the KNX bus
Bus current: <6.5mA / 24V; <5.5mA / 30V
Bus consumption: <165mW
Illuminance: 0-2000lux（ CSBP-04/00.1.0x Only）
Connection: KNX, Bus connection terminal
Operation: -5 °C ... 45 °C
Storage: -25 °C ... 55 °C
Transport: -25 °C ... 70 °C
Humidity: <93%, except dewing
Mounting: Ceiling mounted, Flush mounted in 80 mm or 86mm box
Operation: -5 °C ... 45 °C
Storage: -25 °C ... 55 °C
Transport: -25 °C ... 70 °C
Humidity: <93%, except dewing
Mounting: Ceiling mounted, Flush mounted in 80 mm or 86mm box
